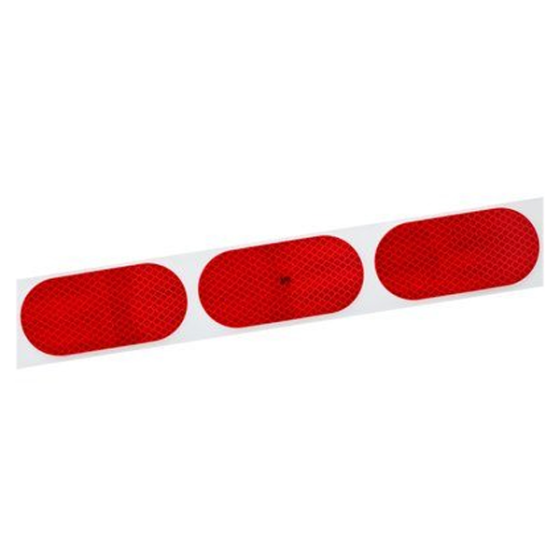

3M ECE104 983S Red Diamond Grade 50mm x 50m Segmented
Central UK Location
Daily deliveries throughout
the UK and Europe
3M ECE104 983S Red Diamond Grade 50mm x 50m Segmented is for use on rigid sided vehicles. Apply to Heavy Goods Vehicles with a mass over 7.5 tonnes and trailers over 3.5 tonnes - perfect for tanker rears.
Use red markings on the rear of vehicles, covering at least 80 percent of its total length and width and as close as possible to the edges.
Red or yellow must be used for the rear of vehicles and yellow or white may be used for the sides, covering at least 80 percent of its length.
- Help to reduce accidents and save lives through increased visibility
- Less accidents mean less downtime and decreased repair costs
- Improves corporate image through being seen to be proactive about safety
- Protect your company against possible legal action related to third party safety
- Meet the requirements of UN-ECE 104 Regulation
Specifications
| Adhesive type | High tack, pressure sensitive, solvent free |
| Applications | Buses, caravance, emergency vehicles, tankers, trailers, trucks |
| Certifications and specifications | ECE 104 |
| Colour | Red |
| Construction | Microprismatic |
| Durability | 8 years |
| Length (metric) | 50m |
| Performance level | Diamond grade |
| Size | 50mm x 50m |
| Smallest sealable unit | Segmented roll |
| Substrates | Automotive paint |
| Width (metric) | 50mm |
ECE104 is a regulation that establishes guidelines for the use of retro-reflective safety markings on heavy goods vehicles operating throughout Europe.
Since July 2011, all newly registered HGVs over 7.5 tonnes and trailers over 3.5 tonnes operating in the UK, are required by law to be fitted with homolgated retro-reflective markings. These must clearly outline the rear and sides of the vehicle to make it visible for up to 1000 metres in low light conditions. ECE104 specifies the standard for the reflective materials used and where and how it must be positioned on the vehicle or trailer.
FAQ
3m ECE104 segmented tape is 50 mm wide.
Each roll of 3M ECE104 segmented tape is 50m long.
3M has rated the ECE104 tape with an 8-year durability (vertical exposure).
In line with the new REMA guidelines, 3M ECE104 tape is R3B compliant for Chapter 8.
3M rate the ECE104 tape with 2-year shelf life after manufacture and before use.
We can supply Red, White and Yellow ECE104 tanker tape.
Yes, for HGV each colour is for different locations on the vehicle. White on the front, red or yellow on the rear, and yellow/white for the side.
Segmented ECE104 tape is designed for tankers as it comes as sealed rounded segments so it can be applied around any shape.
Any new HGV registered that’s over 7.5 tonnes or trailers over 3.5 tonnes must use conspicuity markings.
